1530 ATC 4 Axis Wood Machine
Features
The automatic tool changing function facilitates the tool changing and reduces non-production time during the operation. Its industrial steel square tube structure is rigid and endurable, effectively preventing from vibration and deformation after long-time use of the machine. Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
Description Parameter
Model ELECNC-1530ATC-4A
Tool magazine Linear type auto tool changer with 8 tools storage
X,Y,Z Working Area 1500x3000x400mm
Table Size 1500×3000mm
Table Surface Vacuum and T-slot working table, 6 zones
Structure Industrial class square tube strong structure
X, Y Structure Rack and Pinion Drive, Taiwan PMI 25# Linear Square Rail;
Z Structure Taiwan PMI 25# Linear Square Rail and TBI Ball Screw
Spindle Rotary spindle, 9kw HQD ATC air cooling spindle, Swing -90°to +90° degree
Spindle Speed 0-24000RPM
Drive Motors 850w Japan YASKAWA servo motors and drivers
Inverter 11kw Fuling inverter
Working Voltage 380v, 3phase, 50HZ (or customized)
Command Language G Code
Operating System Taiwan SYNTEC control system
Computer Interface USB
Collet ISO30
Machine color White and blue (Can be customized)
Software Artcam
Lubrication system New type 1.5L big Automatic lubrication
Tool sensor Automatic tool sensor calibration
Vacuum pump 3kw new type double packet dust collector (380V, 3Phase, 50Hz)
Dust collector 7.5kw water circulation vacuum pump (380V, 3Phase, 50Hz)

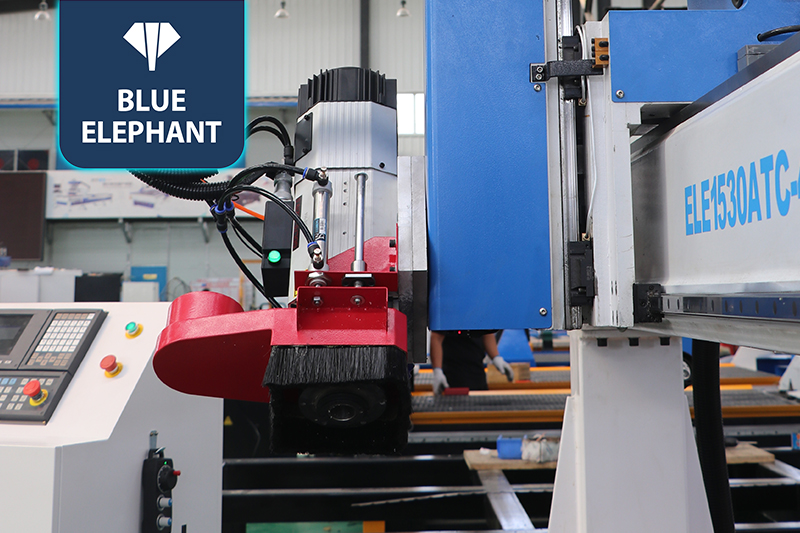

Images
1530 ATC 4 Axis Wood Machine
