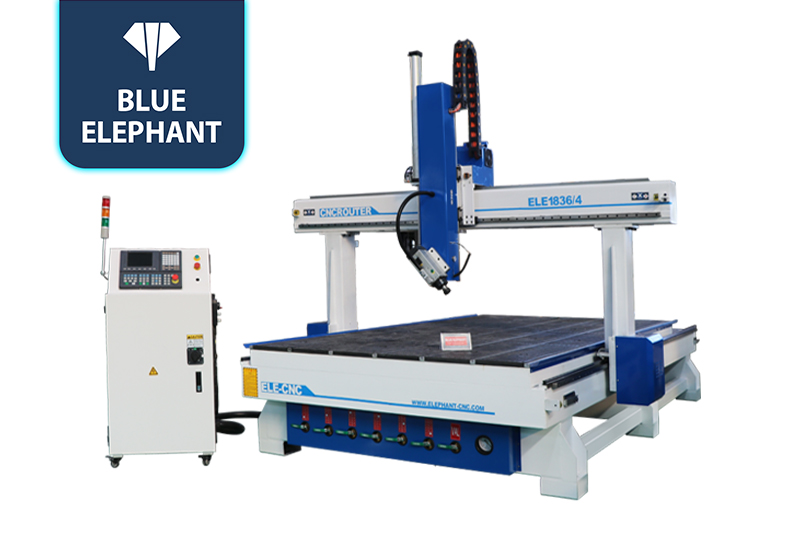

1836 CNC Router Wood
Features
Custom worktable size and high Z-axis travel can meet customers’ processing demands effectively. The rotary CNC router spindle and high Z-axis travel enable this CNC router to process large-sized and tall wood statues. The whole vacuum worktable has a strong adsorption capacity to prevent the panel from sliding or moving during operation.
Parameters
Descriptions Parameters
Model ELE1836
Working area 1800*3660*600mm
Control system SYNTEC 6MB control system
Working Voltage 380V,50HZ,3Phases
Spindle Italy 6kw HSD air cooling spindle rotating +-90 degree
Spindle speed 0-18000rpm
Inverter 7.5KW Taiwan Delta inverter
Motor and Driver Japan YASKAWA 750w servo motor and driver
Table surface T-slot and vacuum working table
Structure Industrial class square tube strong structure
Lubrication system Automatic lubrication system
Transmission ABBA linear guide for X,Y,Z axis

Helical rack on X, Y axis and Taiwan Ball Screw on Z axis
Vacuum pump 7.5kw air type vacuum pump
Limited switch Japan Omron
Software UG
Images
1836 CNC Router Wood

1836 CNC Router Wood
