1637 ATC 4 Aixs CNC Machine
Features
The effective working size is 1600x3700x600mm, which is good at processing thick and tall workpieces.
It is provided with a rotary device and a rotary spindle to process 3D workpieces.
The vacuum worktable with 8 zones has a strong adsorption capacity to prevent the panel from sliding or moving during operation.

Parameters
Model ELECNC-1637ATC
Working Area 1600*3700*600mm
Tool Magazine 12 Tools Carousel Magazines
Working Voltage 220v 3ph 60hz( Option)
Control System Taiwan SYNTEC 21MA control system
Spindle 9.6kw Italy HSD air cooling spindle, can swing ±90°
Spindle Speed 0-24000rpm
Inverter 11kw Taiwan Delta Inverter
Motor & Driver 850w Japan YASKAWA servo motor and 1kw servo driver with 3 pieces Japan Shimpo Reducer
Table Surface T-Slot and Vacuum Working Table,8 zones
Lubrication System 1.5L Auto Lubrication System
Color Yellow and Black (customizable)
Dust collector 1.5kw new type double bag dust colltor
X,Y axis Helical rack gear transmission
Vacuum Pump 2 pieces 5.5kw Tongyou vacuum pump,220v 3ph 60hz
Images

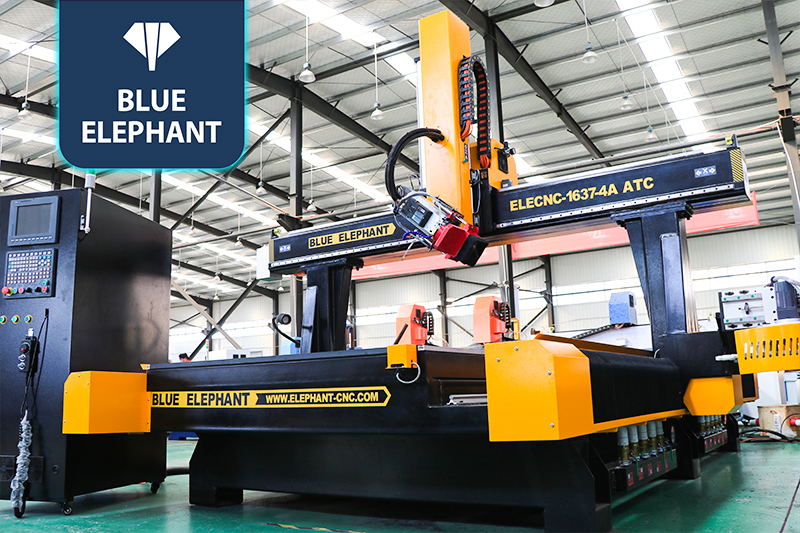

1637 ATC 4 Aixs CNC Machine
