Multi-functional 4 Axis CNC Wood Router
Features
The ATC air-cooled spindle can rotate 180 degrees left and right to realize three-dimensional processing.
It is also equipped with a separate rotary device to carve and engrave cylinders, rods, square sticks, and other cylindrical workpieces.
The Z-axis travel of this ATC CNC machine is 600mm, suitable for processing thick and tall parts.

Parameters
Model ELECNC-1530ATC-4
Working Area 1500*3000*600mm
Tool Magazine 8 Tools Carousel Magazines
Working Voltage 380V,3Phase,50Hz( Option)
Control System Taiwan SYNTEC 6MB Control System
Spindle 9KW HSD Air Cooling Spindle
Spindle Speed 0-24000rpm
Inverter 11KW Taiwan DELTA Inverter
Motor & Driver 850W Japan YASKAWA servo motor and 1KW servo driver,Japan SHIMPO Reducer
Table Surface Bar & Vacuum Table
Lubrication System Auto Lubrication System
Gantry Structure Gantry Moving
Spray/ Flume Automatic Oil Mist Cooling
Frame New Type Heavy Duty Body
X,Y,Z Transmission Helical rack on X,Y axis and Taiwan TBI Ball Screw on Z axis
X,Y,Z Rail Taiwan ABBA/ PMI/ HIWIN Square Guide,#25
Vacuum Pump 7.5KW Water Circulation Vacuum Pump
Dust Collection System 1.5KW New Type Double Bag Dust Collection System
Tool Sensor Auto Tool Sensor Calibration
Rotary device Parallel Rotary Device with FL118 Stepper Motor and YAKO 2811 Gig Driver
Wire High Soft Shjeld with Copper Wire to Protect Against Static Electricity
Images

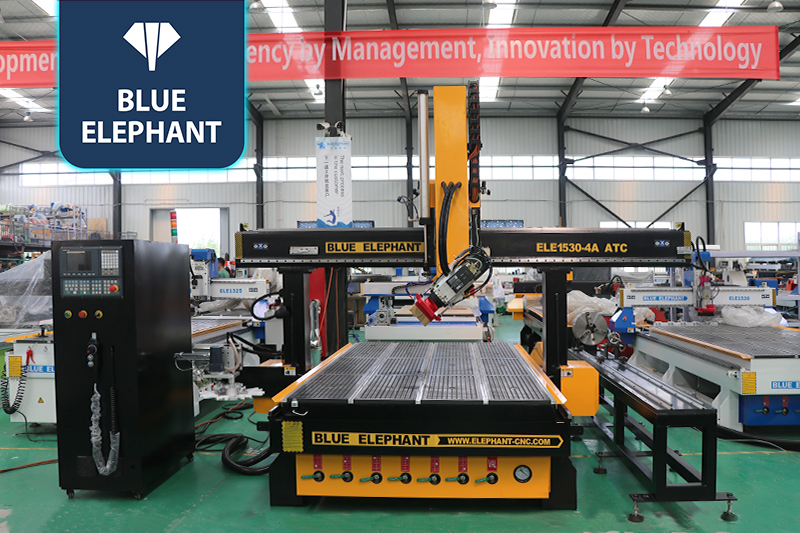

Multi-functional 4 Axis CNC Wood Router

Multi-functional 4 Axis CNC Wood Router
