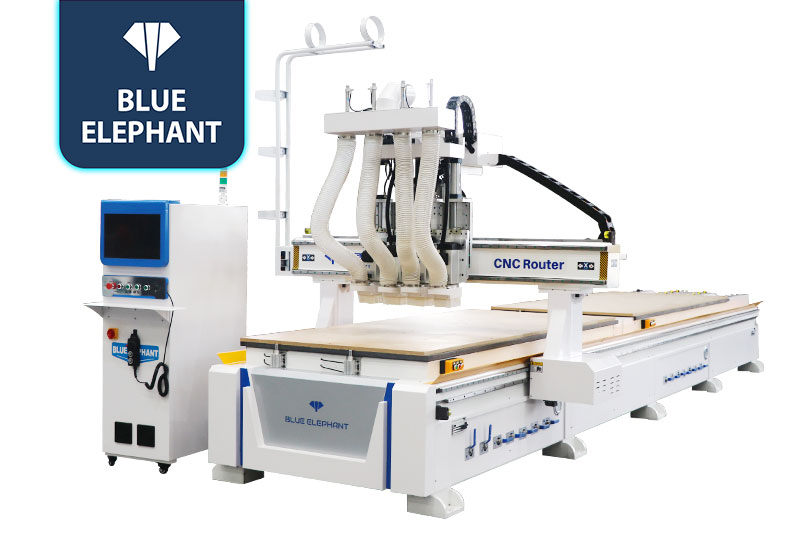

4-process double-station CNC Router
Features
There are two double worktables, which can be used alternately for processing, reducing idle time and saving production costs.
The bed structure adopts a new type of seamless welded bed with large square tube, which is processed by five-sided milling, adopts widened square tube, and adds reinforced square tube to improve the strength of the bed and the table.
The heavy-duty reinforced beam structure improves the stability of the beam, high precision, and can carry a large weight. The table top of the CNC cutting machine adopts a 7-zone vacuum adsorption table, equipped with 6 positioning cylinders, customized embedded parts to absorb the bottom plate, and the bottom plate can be quickly replaced without glue. Secondary dust removal effect.
Adopt automatic lubrication, microcomputer gear pump automatic oil injection system, higher oil injection pressure, volumetric oil discharge to ensure uniform oil injection, maintenance-free.
All three axes of the machine use original linear square rails. good stability, long service life and high precision.
Parameters
product name |
4-process double-station CNC Router |
Machine color (can be customized) |
white grey blue |
Chassis Voltage/Frequency |
AC 380V/50, 3P |
working area |
1300*2800*200 (duplex) |
bed structure |
New style large square tube |
Gantry structure |
Heavy-duty reinforced beam structure |
countertop structure |
7-zone vacuum suction table |
system |
Baoyuan Control System |
Spindle |
JST air-cooled spindle |
Inverter |
Best |
Motors and Drive Systems |
Dongling high-power pure servo motor + Japan Xinbao reducer |
transfer method |
helical rack |
guide |
Dinghan square rail |
Lubrication system |
automatic lubrication |
vacuum pump |
vacuum pump |
Vacuum cleaner |
Double bag vacuum cleaner |
knife |
Mobile automatic tool setter |
