FeaturesIntelligent punching, no need to pay attention to the size and placement direction of the board, accurate positioning by laser scanning, and intelligent judgment of the punching position.
There are custom limit, high safety protection.
No need to scan the barcode, just put it and punch it, it is convenient and quick to scan the hole and punch the hole.
A variety of punching modes can be freely switched to meet various process requirements.
Parameters| product name | side hole machine |
| Body Specifications | 3300*1250*1300mm |
| work plan | 2800mm |
| table height | 750mm |

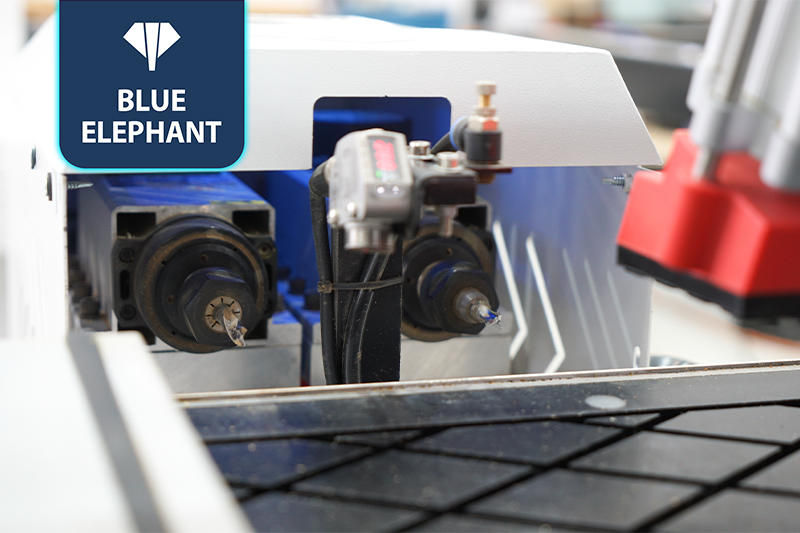

| Spindle motor | Prosperity air-cooled spindle x2 |
| Spindle motor power | 2.2KW |
| Spindle speed | 18000RP m/min |
| idle speed | 10-120m/min |
| Processing speed | 10-80m/min |
| Laser sensor | Bonner Laser Probe |
| drive motor power | 750w+400w |
| motor | Dongling Dual Servo |
| Control System | QIYUE customized scanning code scanning dual system |
| code scanning gun | Dual system dedicated code scanning gun |
| guide | 20 square rails |
| lead screw | TBI lead screw |
| rack | Jury rack |
| reducer | taiwan planet |
| Bearings and housings | Taiwanese |
| cable | Shanghai high soft double sheath |
| Pneumatic Components | Yadak components |
| mesa | Carved countertops |
| Electrical main parts | Schneider Electric |
| cylinder | Oblique cylinder |
| Limit | Customized limit/safety protection |
